SMPS is a device that provides TVs with stable D.C voltage with the switching circuit, the semiconductor device is applied, and transformer that converts the power source into controllable D.C output power.
-
Characteristic
Diverse line-up ranging from 32 inches to 85 inches
Acquired competitiveness through minimization and lightening
Highly efficient and low-consumption power through optimization of circuits
Improved credibility through the automation of TRANS
Applied LOCAL Dimming Control, Wide-LLC, and SR rectificationApplication
For UHD/FHD/HD LED TV
For MonitorFor LFD
Product Structure

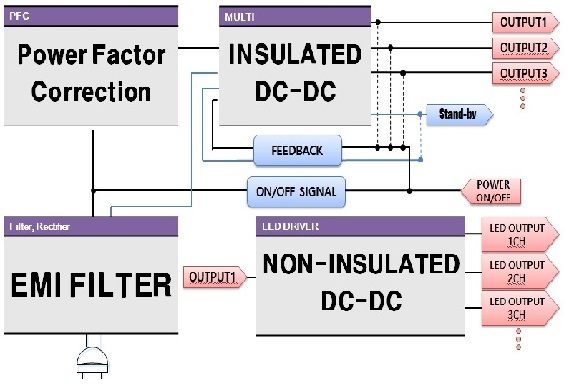

- Competitiveness & Diagram
Product Line-Up
| SMPS for LED TV | ||||||
|---|---|---|---|---|---|---|
| Inch | 32″ | 40″ | 48″ | 55″ | 60″ | 85″ |
| Image |  |
 |
 |
 |
 |
 |
| Input voltage | 90~264 Vac | |||||
| Output power | 60W | 119W | 131W | 203W | 364W | 473W |
| Topology | FLYBACK | PFC+LLC | PFC+LLC | PFC+LLC | PFC+LLC | PFC+LLC |
| Output voltage/current |
A13 (12.8V, 2.0A) VAMP (12.8V, 0.37A) LED (65V, 450mA) |
A13 (12.8V, 2.7A) VAMP (12.8V, 0.37A) LED (138V, 425mA |
A13 (12.8V, 3.6A) VAMP (12.8V, 0.38A) LED (177V, 450mA) |
A13 (12.8V, 4.2A) VAMP (12.8V, 0.37A) LED (273V, 225mA) |
A13 (12.8V, 6A) VAMP (12.8V, 0.37A) LED (260V, 500mA*2) |
A13 (12.8V, 12A) VAMP (18V, 0.63A) LED (154V, 250mA*8 |
| Dim(mm) | 130*160*26.1 | 197*160*18.1 | 225*160*18.1 | 245*245*18.1 | 330*305*18.1 | 445*330*26.1 |
| Efficiency | Min 80% | |||||
| EMI | CLASS B | |||||
| Inch | 32″ |
|---|---|
| Image | |
| Input voltage | 90~264 Vac |
| Output power | 60W |
| Topology | FLYBACK |
| Output voltage/current |
A13 (12.8V, 2.0A) VAMP (12.8V, 0.37A) LED (65V, 450mA) |
| Dim(mm) | 130*160*26.1 |
| Efficiency | Min 80% |
| EMI | CLASS B |
| Inch | 40″ |
|---|---|
| Image | |
| Input voltage | 90~264 Vac |
| Output power | 119W |
| Topology | PFC+LLC |
| Output voltage/current |
A13 (12.8V, 2.7A) VAMP (12.8V, 0.37A) LED (138V, 425mA) |
| Dim(mm) | 197*160*18.1 |
| Efficiency | Min 80% |
| EMI | CLASS B |
| Inch | 48″ |
|---|---|
| Image | |
| Input voltage | 90~264 Vac |
| Output power | 131W |
| Topology | PFC+LLC |
| Output voltage/current |
A13 (12.8V, 3.6A) VAMP (12.8V, 0.38A) LED (177V, 450mA) |
| Dim(mm) | 225*160*18.1 |
| Efficiency | Min 80% |
| EMI | CLASS B |
| Inch | 55″ |
|---|---|
| Image | |
| Input voltage | 90~264 Vac |
| Output power | 203W |
| Topology | PFC+LLC |
| Output voltage/current |
A13 (12.8V, 4.2A) VAMP (12.8V, 0.37A) LED (273V, 225mA) |
| Dim(mm) | 245*245*18.1 |
| Efficiency | Min 80% |
| EMI | CLASS B |
| Inch | 60″ |
|---|---|
| Image | |
| Input voltage | 90~264 Vac |
| Output power | 364W |
| Topology | PFC+LLC |
| Output voltage/current |
A13 (12.8V, 6A) VAMP (12.8V, 0.37A) LED (260V, 500mA*2) |
| Dim(mm) | 330*305*18.1 |
| Efficiency | Min 80% |
| EMI | CLASS B |
| Inch | 85″ |
|---|---|
| Image | |
| Input voltage | 90~264 Vac |
| Output power | 473W |
| Topology | PFC+LLC |
| Output voltage/current |
A13 (12.8V, 12A) VAMP (18V, 0.63A) LED (154V, 250mA*8) |
| Dim(mm) | 445*330*26.1 |
| Efficiency | Min 80% |
| EMI | CLASS B |
