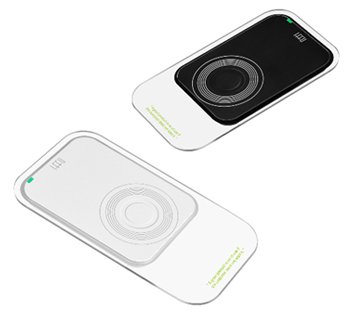

Wireless Charger For Mobile Device
Charging can be performed in inductive mode in which the electric current of a transmitter coil generates electromagnetic induction to convey power to an adjacent receiver coil, and in resonant mode which uses the resonant frequency between transmitter and receiver coils to convey power.
-
Characteristic
Passed WPC Qi Standard
High efficiency charging (70% or higher)
Provides FOD
Product feature
Supply contract with Hyundai Mobis
Accessories for Santa Fe/MaxCruz
Satisfies HKMC EMC Product Standards, first in Korea
WPC “qi” Certified Product
Foreign Object Detection (FOD)
Developed 15W PTU

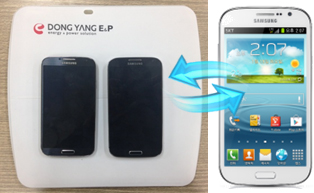

Capable of charging multiple devices
Free positioning
PTU Resonator A4WP class2, 3
SYSTEM diagram

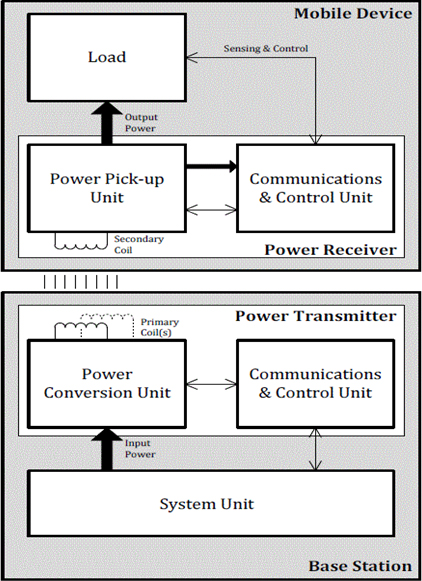

- INDUCTIVE(Image courtesy of WPC)

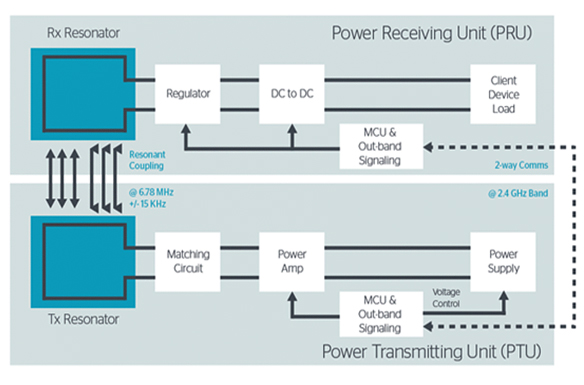

- Resonant(Image courtesy of AirFuel Alliance)
Product Line-Up
| NO |
Item |
Mobile |
AutoMotive |
AirFuel Alliance |
| 1 |
Design |
 |
 |
 |
 In Development |
| 2 |
Model Name |
EP-P100 |
WCi-1100 |
SantaFe/Maxcruz |
– |
| 3 |
Technology |
Magnetic Induction |
Magnetic Induction |
Magnetic Induction |
Magnetic Resonance |
| 4 |
Standard |
WPC 1.1 |
WPC 1.1 |
WPC 1.1 |
– |
| 5 |
Frequency |
110 ~205kHz |
110 ~205kHz |
110 ~205kHz |
6.78MHz |
| 6 |
Power |
5V/2A |
5V/2A |
12V/1A |
12V 1.5A |
| 7 |
Dimension |
90 * 160 * 11.5 |
90 * 167 * 12 |
174 x 137 x 26.3 |
TBD |
| 8 |
Weight |
120g |
100g |
350g |
TBD |
| 9 |
Color |
White |
Black & White |
Black |
– |
| 10 |
Certification |
WPC qi, KC, CE, FCC |
WPC qi, KC |
WPC qi, KC |
TBD |
| Item |
Mobile |
| Design |
|
| Model Name |
EP-P100 |
| Technology |
Magnetic Induction |
| Standard |
WPC 1.1 |
| Frequency |
110 ~205kHz |
| Power |
5V/2A |
| Dimension |
90 * 160 * 11.5 |
| Weight |
120g |
| Color |
White |
| Certification |
WPC qi, KC, CE, FCC |
| Item |
Mobile |
| Design |
|
| Model Name |
WCi-1100 |
| Technology |
Magnetic Induction |
| Standard |
WPC 1.1 |
| Frequency |
110 ~205kHz |
| Power |
5V/2A |
| Dimension |
90 * 167 * 12 |
| Weight |
100g |
| Color |
Black & White |
| Certification |
WPC qi, KC |
| Item |
AutoMotive |
| Design |
|
| Model Name |
B8F76-AC200 |
| Technology |
Magnetic Induction |
| Standard |
112KHz ~ 205KHz |
| Frequency |
-30 ~ 60℃ |
| Power |
12V 1A |
| Dimension |
174×137×26.3㎣ |
| Weight |
350g |
| Color |
PC |
| Certification |
Black |
| Item |
AirFuel Alliance |
| Design |
In Development |
| Model Name |
– |
| Technology |
Magnetic Resonance |
| Standard |
– |
| Frequency |
6.78MHz |
| Power |
TBD |
| Dimension |
TBD |
| Weight |
TBD |
| Color |
– |
| Certification |
TBD |
