POWER + INVERTER
The product possesses vector control to facilitate the drive of highly efficient compressors and fan motor. The semiconductor switching device and transformer are used to convert a power source into delivering highly efficient and high quality power to the drive INVERTER.
The product possesses vector control to facilitate the drive of highly efficient compressors and fan motor. The semiconductor switching device and transformer are used to convert a power source into delivering highly efficient and high quality power to the drive INVERTER.
-
Characteristic
Drive speed can be changed from 2000rpm up to 38000rpm
Highly efficient drive with Vector Control
Slim Design
Optimization of the circuits, positive power supply, multi output, low standby powerApplication
Dehumidifier
-
Characteristic
Drive speed can be changed from 1000rpm up to 4000rpm
Highly efficient drive with Vector Control
Slim Design
Optimization of the circuits, positive power supply, multi output, low standby powerApplication
Air Conditioner
Product Structure
- Product Configuration

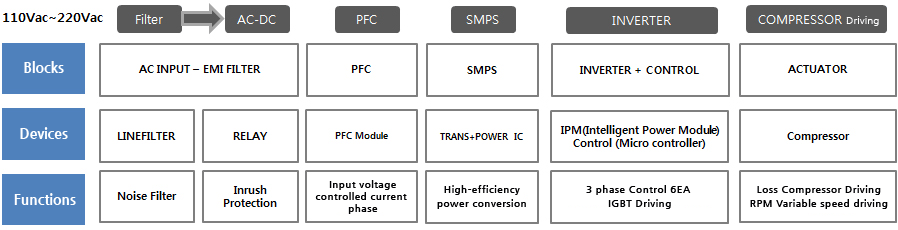

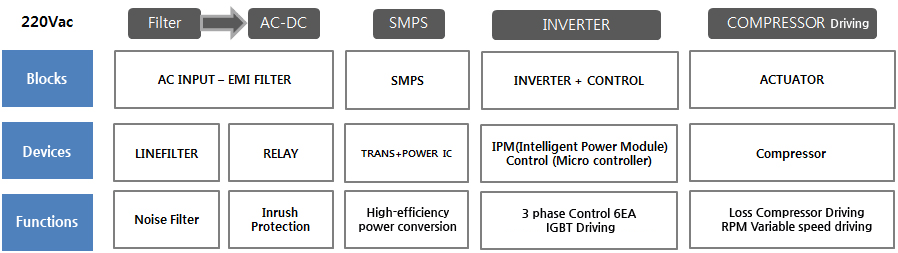

- Competitiveness & Diagram
POWER + Driver for Motor & Compressor
| Power + Inverter Specification | |||
|---|---|---|---|
| Output Power | 500W~800W | 1.5kW | 3.0kW |
| Input Voltage | 220Vac | 110 ~ 220Vac | 110 ~ 220Vac |
| Function | Fan / Compressor | PFC / Fan / Compressor | PFC / Fan / Compressor |
| Communication Protocol |
UART communication | UART communication 485 communication |
UART communication 485 communication |
| Dimension(mm) | 125*213*28mm | 255*175*53mm | 255*175*50mm |
| Product Application |
Dehumidifiers, refrigerators | wall-mounted air conditioners | air conditioners |
| Output Power | 500W~800W |
|---|---|
| Input Voltage | 220Vac |
| Function | Fan / Compressor |
| Communication Protocol |
UART communication |
| Dimension(mm) | 125*213*28mm |
| Product Application |
Dehumidifiers, refrigerator |
| Output Power | 1.5kW |
|---|---|
| Input Voltage | 110 ~ 220Vac |
| Function | PFC / Fan / Compressor |
| Communication Protocol |
UART communication 485 communication |
| Dimension(mm) | 255*175*53mm |
| Product Application |
wall-mounted air conditioners |
| Output Power | 3.0kW |
|---|---|
| Input Voltage | 110 ~ 220Vac |
| Function | PFC / Fan / Compressor |
| Communication Protocol |
UART communication 485 communication |
| Dimension(mm) | 255*175*50mm |
| Product Application |
air conditioners |
